Overview

The InfiniBand™ Architecture (IBA) is an industry standard that defines a new high-speed switched fabric subsystem designed to connect processor nodes and I/O nodes to form a system area network. This new interconnect method moves away from the local transaction-based I/O model across busses to a remote message-passing model across channels. The architecture is independent of the host operating system (OS) and the processor platform.

IBA provides both reliable and unreliable transport mechanisms in which messages are enqueued for delivery between end systems. Hardware transport protocols are defined that support reliable and unreliable messaging (send/receive), and memory manipulation semantics (e.g., RDMA read/write) without software intervention in the data transfer path.

The InfiniBand specification primarily defines the hardware electrical, mechanical, link-level, and management aspects of an InfiniBand fabric, but does not define the lowest layers of the operating system stack needed to communicate over an InfiniBand fabric. The remainder of the operating system stack to support storage, networking, IPC, and systems management is left to the operating system vendor for definition. More on the InfiniBand architecture can be found here.

The site is organized as a series of sub-projects; listed in the contents pane at the left. This page contains a high level overview of each sub-project.

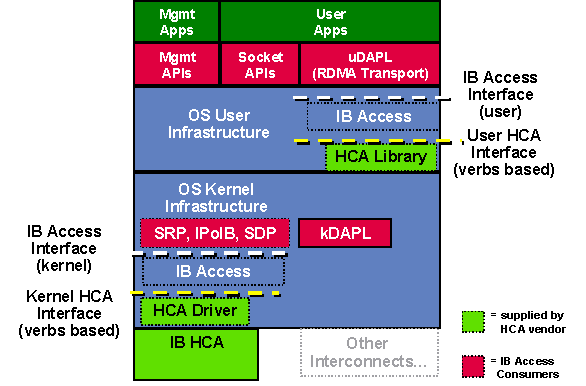

High Level Architecture

Project Definition

The Linux InfiniBand Project is a collection of sub-projects and activities all focused around the common goal of providing the operating system software components needed to support an InfiniBand fabric, specifically for the Linux operating system. The architecture for several of these components is further influenced by existing and emerging standards that define uniform protocols for components of the operating system. Examples here are emerging protocols like Internet Protocol over InfiniBand (IPoIB) and the SCSI RDMA Protocol (SRP) and proposed definitions for standard InfiniBand transport and driver APIs.

Goals

This project is focused on promoting, enabling and delivering the software components needed to support an InfiniBand fabric for the Linux operating system. The primary goals of this project include:

Definition of an IBA infrastructure for Linux, including user mode and kernel mode components
Providing a portable software base that works with Linux 2.4 kernel and allows easy porting to other Operating Systems
If you want InfiniBand open source support for Linux 2.6 kernels, the developers on this project have merged efforts with the OpenIB.org Alliance. Much of the code and learning from this project are being incorporated into the OpenIB.org project. (http://www.openib.org). OpenIB.org is working on InfiniBand code specifically for Linux 2.6 and the first patches have been accepted into the 2.6.11 kernel availabe from kernel.org. (http://www.kernel.org).
If you need to use something that runs on 2.4 kernels, then you can use the IBAL code from this project or use one of the InfiniBand vendors proprietary stacks. There are however no plans to move this code base to 2.6, so care should be taken to code to common interfaces, such as DAPL, that will be available from both projects. This will facilitate an easy migration when it comes time to move to Linux 2.6.

This project serves as an overall umbrella for the development of these operating system components.

Licensing Details

This software is being made available under a choice of one of two licenses. You may choose to be licensed under either the GNU General Public License (GPL) Version 2, June 1991, available at http://www.fsf.org/copyleft/gpl.html, or the Intel BSD + Patent License, further described here.

This code was developed to comply with the InfiniBand Architecture Specifications. The InfiniBand Architecture Specifications were developed by the InfiniBand Trade Association (IBTA) and there are certain legal rights and obligations associcated with the specifications set forth by the IBTA. For more information on InfiniBand and the IBTA, see http://www.infinibandta.org,

Deliverables

The deliverables of this project are listed in the contents at the left under the "Sub-Projects" section. Below is a brief overview of each of these sub-projects. Select a particular sub-project for more details and specifics relevant to that sub-project.

Hardware Drivers – This is a vendor-specific piece of software that together with the vendor’s HCA forms a unit capable of implementing the verbs as specified in the InfiniBand specification.
- HCA DDK – The HCA Driver Developers Kit is used by HCA vendors in order to plug their HCA Driver into the InfiniBand Access layer. The HCA DDK contains a sample driver template and headers needed to develop a driver that plugs into the access layer infrastructure.
Infrastructure Drivers:
- InfiniBand Access – This software exports the full capabilities of the underlying HCA implementations to higher-level software. It exists to provide useful services that would otherwise be duplicated in the independent upper-level components, and to coordinate access to shared InfiniBand resources (such as the SMI and GSI) that are needed by multiple upper-level components. The InfiniBand Access component is envisioned to provide several services.
- Fabric Boot – This software provides the necessary capabilities to provide fabric boot support for operating systems that support the Extensible Firmware Interface (EFI) definition.
Storage Drivers:
- SRP – The SCSI RDMA Protocol (SRP) developed by the ANSI NCITS T10 working group is designed to take full advantage of the features provided by the InfiniBand Architecture and enables access to remote storage devices across an InfiniBand fabric.
Networking Drivers:
- IPoIB – IPoIB provides standardized IP encapsulation over InfiniBand fabrics as defined by the IETF. This driver operates only within an InfiniBand fabric.
- SDP – The Sockets Direct Protocol (SDP) is an InfiniBand specific protocol defined by the Software Working Group (SWG) of the InfiniBand Trade Association (IBTA). It defines a standard wire protocol over IBA fabric to support user-mode stream sockets (SOCK_STREAM) networking over IBA.
- VNIC – The Virtual NIC (VNIC) driver enables a host on an InfiniBand fabric to access nodes on an external Ethernet without requiring an Ethernet NIC to be installed in that host.
IPC Drivers:
- kDAPL – kDAPL is the kernel Direct Access Provider Library reference implementation for InfiniBand. It is a high performance Remote Direct Access Memory (RDMA) API for the kernel. This effort is being undertaken by the DAT Collaborative.
- uDAPL – uDAPL is the user-mode Direct Access Provider Library reference implementation for InfiniBand. It is a high performance Remote Direct Access Memory (RDMA) API for user-mode.
Subnet Management – Provides the basic Subnet Manager functionality as defined in Volume 1 of the InfiniBand specification. Subnet Management handles several areas related to the operation of the subnet including: discovery, monitoring and configuration of the ports connected to the subnet, responding to subnet administrative (SA) queries, configuration of I/O units with host channel drivers, performance management, and baseboard management.

The code can be downloaded from the main sourceforge project page.

Download Code

(Click Here to go to the downlaods page - http://www.sourceforge.net/projects/infiniband). –

Most of the code is currently at a close or at a production level of quality and has been tested using the Mellanox InfiniBand HCA and switches. The code has been tested on various version of 2.4.x kernels. See the INSTALL.txt and ReleaseNotes.txt in the tar ball for details.
